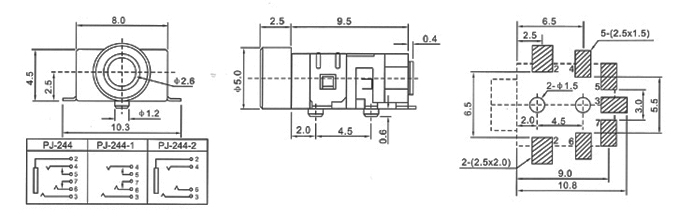

      PJ-244









      Details




      PJ-244    詳情說明 型號：PJ-244

技術指標：







				使用溫度范圍 Temperature

				-30～70℃

				耐壓 Withstand Voltage

				AC500V(50Hz)/min





				額定負荷 Rated Load

				DC 30V 0.5A

				動作力 Actuating Force

				3～20N





				接觸電阻 Contact Resistance

				≤0.03Ω

				壽命 Life

				5000次





				絕緣電阻 Insulation Resistance

				≥100MΩ
